Products

Our Products

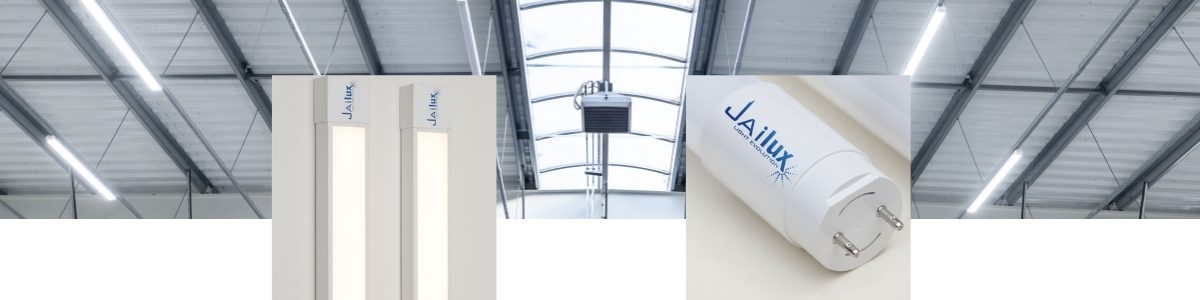

Fixed General Purpose LED Luminaires

RATED WATTAGE	POWER	CRI	POWER FACTOR	LED COLOUR TEMP
RANGING FROM 7W TO 36W	7W TO 36W	80	0.9	2700\|6500

HIGH-EFFICIENCY LED TUBE LIGHTS AND BATTENS CRAFTED WITH PRECISION USING EXTRUDED ALUMINUM HOUSING AND DURABLE POLYCARBONATE. FITTED WITH STURDY ENDCAPS AND A WELL-ENGINEERED DIFFUSER, THEY DELIVER UNIFORM ILLUMINATION WITH MINIMAL GLARE WHILE MAINTAINING A SLEEK, MODERN DESIGN.
RATED VOLTAGE	230V AC, 50Hz	DRIVER EFFICIENCY	85%
OPERATING VOLTAGE	100 - 300V AC	LED TYPE	LM - 80 CERTIFIED, SMD LED CHIPS USED
INGRESS PROTECTION (IP)	20/ 40 / 65	LED MAKE	EVERLIGHT / EDISON / PHILIPS LUMILEDS / BRIDGE LUX / SEOUL
LENGTH	BATTEN: 230mm - 1150mm RETROFIT: 2ft - 4ft	LED LIFE SPAN	MORE THAN 50000 HRS WITH L-70
OPERATING TEMPERATURE	-10°C TO 55°C	CONFIRMING TO	IS 10322, LM-79, LM-80

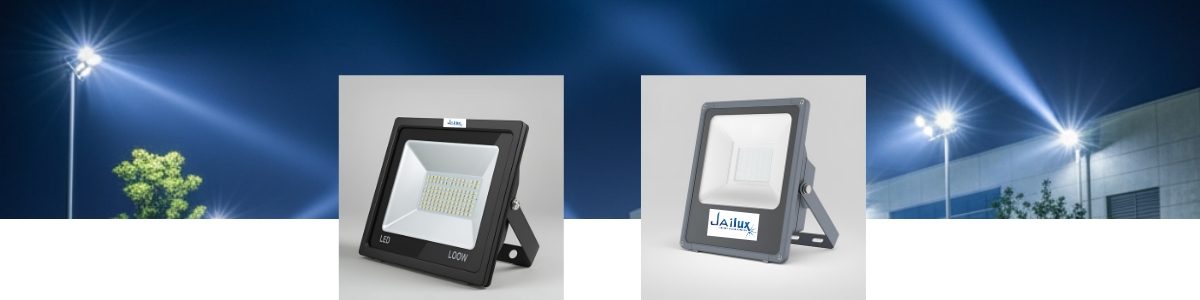

Fixed General Purpose LED Luminaires

RATED WATTAGE	POWER	CRI	POWER FACTOR	COLOUR TEMP
RANGING FROM 40W TO 250W	40W TO 250W	80	0.9	2700\|6500

ENERGY-SAVING LED FLOOD AND BAY LIGHTS BUILT WITH DIE-CAST ALUMINUM HOUSING, PROTECTIVE POWDER COATING, SILICONE SPONGE GASKET, AND STAINLESS STEEL HARDWARE. DESIGNED WITH A FRAMED TOUGHENED GLASS SEAL FOR DURABILITY, RELIABILITY, AND LONG-LASTING PERFORMANCE.
RATED VOLTAGE	230V AC, 50Hz	DRIVER EFFICIENCY	85%
OPERATING VOLTAGE	90 - 300V AC	THD	=<10%
INGRESS PROTECTION (IP)	66	LED MAKE	PHILIPS LUMILEDS/OSRAM/CREE/SAMSUNG/SEOUL
DRIVER TYPE	CONSTANT CURRENT, ISOLATED	LED LIFE SPAN	MORE THAN 50000 HRS WITH L-70
OPERATING TEMPERATURE	-10°C TO 50°C	CONFIRMING TO	IS 10322/PART-5.SEC-5/2013,LM-79,LM-80

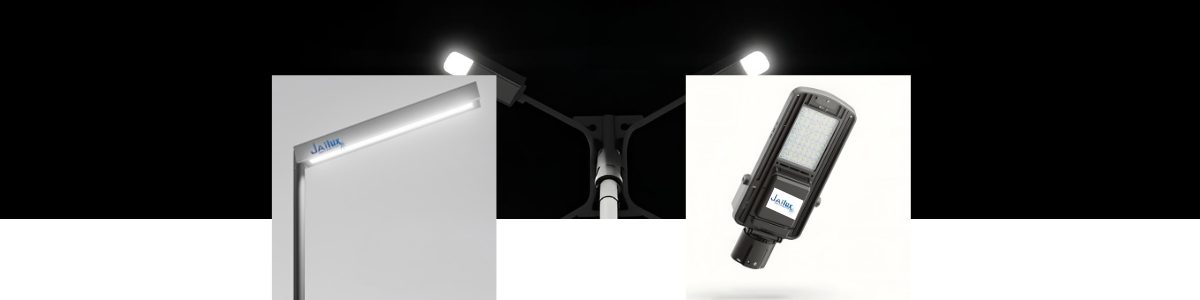

LED Luminaires for Road and Street Lighting

RATED WATTAGE	POWER	CRI	POWER FACTOR	COLOUR TEMP
RANGING FROM 18W TO 300W	18W TO 300W	70	0.90	2700\|6500

ENERGY-EFFICIENT PREMIUM LED STREET LIGHTS WITH DIE-CAST ALUMINUM HOUSING, DURABLE POWDER COATING, SILICONE SPONGE GASKET, AND STAINLESS STEEL HARDWARE. EQUIPPED WITH HIGH-QUALITY LENSES FOR UNIFORM LIGHT DISTRIBUTION AND GLARE CONTROL, SECURED WITH A FRAMED TOUGHENED GLASS SEAL FOR LONG-LASTING RELIABILITY.
RATED VOLTAGE	230V AC, 50Hz	DRIVER EFFICIENCY	85%	THD	<10%
OPERATING VOLTAGE	90 - 300V AC	LED TYPE	LM - 80 CERTIFIED, SMD LED CHIPS USED
INGRESS PROTECTION (IP)	66	LED MAKE	PHILIPS LUMILEDS/OSRAM/CREE/SAMSUNG/SEOUL
DRIVER TYPE	CONSTANT CURRENT, ISOLATED	LED LIFE SPAN	MORE THAN 50000 HRS WITH L-70
OPERATING TEMPERATURE	-10°C TO 50°C	CONFIRMING TO	IS 10322/PART-5.SEC-3/2012,LM-79,LM-80

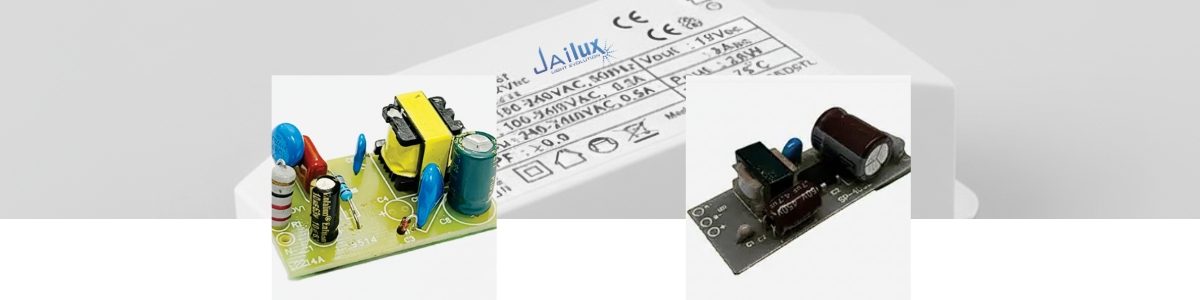

DC or AC Supplied Electronic Controlgear for LED Modules

RATED WATTAGE	DRIVER CATEGORY	FEATURES	WATTAGE USE CASE	DESIGN
RANGING FROM 3W TO 100W	INDOOR ISOLATED/ NON-ISOLATED HPF, INDOOR ISOLATED/ NON-ISOLATED LPF DRIVERS, DIMMABLE DRIVERS, DOB DRIVERS, OUTDOOR POTTED, OPEN FRAME DRIVERS	FLICKER FREE, EXCELLENT HEAT MANAGEMENT, EXCELLENT LINE AND LOAD REGULATION	IDEAL FOR LOW AND HIGH WATTAGE	SMALL AND COMPACT

HIGH-PERFORMANCE ENERGY-EFFICIENT LED DRIVERS ENGINEERED WITH ADVANCED CIRCUIT DESIGN, HOUSED IN ROBUST ENCLOSURES WITH OPTIMAL HEAT MANAGEMENT, BUILT-IN PROTECTION AGAINST SURGE, OVER-VOLTAGE, AND SHORT-CIRCUIT, ENSURING RELIABLE OPERATION, LONG LIFE, AND CONSISTENT PERFORMANCE ACROSS ALL LIGHTING APPLICATIONS.
POWER FACTOR	≥ 0.5 / ≥ 0.9	PROTECTIONS	OVP, SHORT CIRCUIT PROTECTION
THD	< 10 / < 15	CURRENT ACCURACY	±2.5% / ±5%
INPUT RANGE	WIDE: 110 TO 300 VAC SHORT: 120 TO 280 VAC	POWER	1W TO 100W
SURGE PASS	UPTO 6 KV	RATING	200mA TO 1200mA

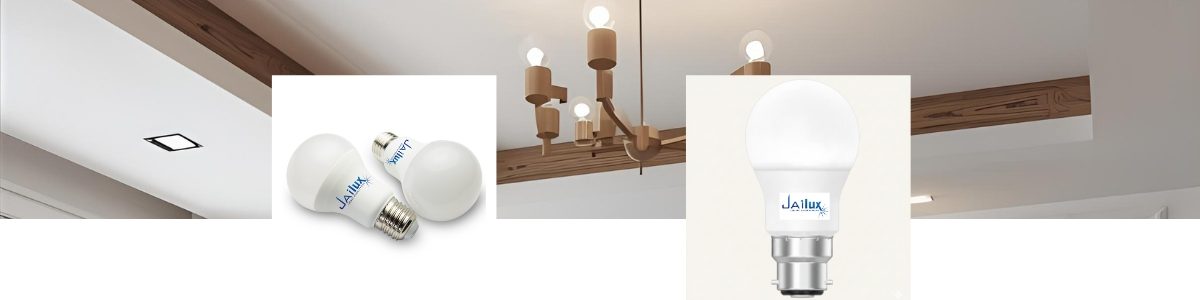

Self-Ballasted LED Lamps for general Lighting Services

RATED WATTAGE	POWER	CRI	POWER FACTOR	COLOUR TEMP
RANGING FROM 5W TO 30W	5W TO 30W	80	0.90	2700 I 4000 I 5700 I 6500

ENERGY-EFFICIENT LED BULBS DESIGNED WITH DURABLE POLYCARBONATE HOUSING AND ALUMINUM INSERTS FOR SUPERIOR THERMAL MANAGEMENT, ENCLOSED WITH A POLYCARBONATE DIFFUSER TO PROVIDE UNIFORM LIGHT DISTRIBUTION AND EFFECTIVE GLARE CONTROL.
RATED VOLTAGE	230V AC, 50Hz	DRIVER EFFICIENCY	85%
OPERATING VOLTAGE	140 - 260V AC	LED TYPE	LM - 80 CERTIFIED, SMD LED CHIPS USED
INGRESS PROTECTION (IP)	40	LED MAKE	EVERLIGHT / EDISON / PHILIPS LUMILEDS / BRIDGE LUX / SEOUL
DRIVER TYPE	CONSTANT CURRENT	LED LIFE SPAN	MORE THAN 50000 HRS WITH L-70
OPERATING TEMPERATURE	-10°C TO 50°C	CONFIRMING TO	IS 16102,LM-79,LM-80

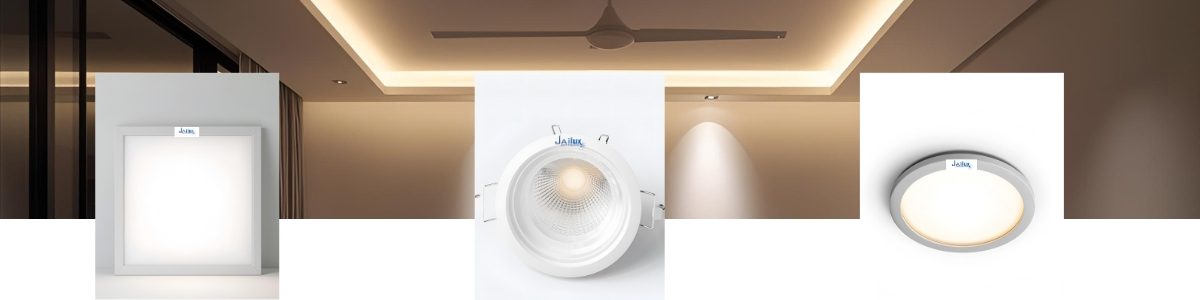

Recessed LED Luminaires

RATED WATTAGE	POWER	CRI	POWER FACTOR	LED COLOUR TEMP
RANGING FROM 3W TO 50W	3W TO 50W	80	0.90	3000 I 4000 I 5700 I 6500

ENERGY-EFFICIENT LED SLIM SQUARE PANELS WITH DIE-CAST ALUMINUM HOUSING, DURABLE POWDER COATING, AND A POLYCARBONATE DIFFUSER DESIGNED TO DELIVER UNIFORM LIGHT DISTRIBUTION WITH SUPERIOR GLARE CONTROL.
RATED VOLTAGE	230V AC, 50Hz	DRIVER EFFICIENCY	85%
OPERATING VOLTAGE	140 - 260V AC	LED TYPE	LM - 80 CERTIFIED, SMD LED CHIPS USED
INGRESS PROTECTION (IP)	40	LED MAKE	EVERLIGHT / EDISON / PHILIPS LUMILEDS / BRIDGE LUX / SEOUL
DRIVER TYPE	CONSTANT CURRENT	LED LIFE SPAN	MORE THAN 50000 HRS WITH L-70
OPERATING TEMPERATURE	-10°C TO 50°C	CONFIRMING TO	IS 10322/PART-5/SEC-2/2012,LM-79,LM-80

LED Luminaire for Floodlight (V2) Conforming to IS 10322 (Part 5/Section 5)

RATED WATTAGES	POWER	CRI	POWER FACTOR	RATED LUMENS	COLOUR TEMP
RANGING FROM 20W UPTO 400W	20W TO 400W	70	0.90	2000 - 40000	3000 I 6500

ENERGY-EFFICIENT LED COB FLOOD LIGHTS BUILT WITH DIE-CAST ALUMINUM HOUSING, PROTECTIVE POWDER COATING, SILICONE SPONGE GASKET, AND STAINLESS STEEL HARDWARE. SEALED WITH TOUGHENED GLASS IN A FRAMED DESIGN FOR STRENGTH, DURABILITY, AND CONSISTENT PERFORMANCE.
RATED VOLTAGE	230V AC, 50Hz	DRIVER EFFICIENCY	85%	THD	<10%
OPERATING VOLTAGE	90 - 300V AC	LED TYPE	LM - 80 CERTIFIED, COB LED USED
INGRESS PROTECTION (IP)	66	LED MAKE	PHILIPS LUMILEDS/OSRAM/CREE/SAMSUNG/SEOUL
DRIVER TYPE	CONSTANT CURRENT, ISOLATED	LED LIFE SPAN	MORE THAN 50000 HRS WITH L-70
OPERATING TEMPERATURE	-10°C TO 50°C	CONFIRMING TO	IS 10322/PART-5.SEC-5/2013,LM-79,LM-80
